Blazing Fast

The Kanex ThunderboltTM 3 cable provides up to 40Gbps throughput, that is four times the max bandwidth of SuperSpeed USB 3.0.

Daisy Chaining

Gamers can plug ‘n’ play from an external graphics source directly to a laptop and enjoy the latest games at recommended or higher settings.

Works with up to 6 daisy-chained Thunderbolt 3 devices.

Premium Conductivity & Components

Each Kanex Thunderbolt 3 cable has oxygen free conductors that provide superior signal transfer, premium anodized aluminum housing, plus a durable cord.

Everything you need to know about Thunderbolt™ 3

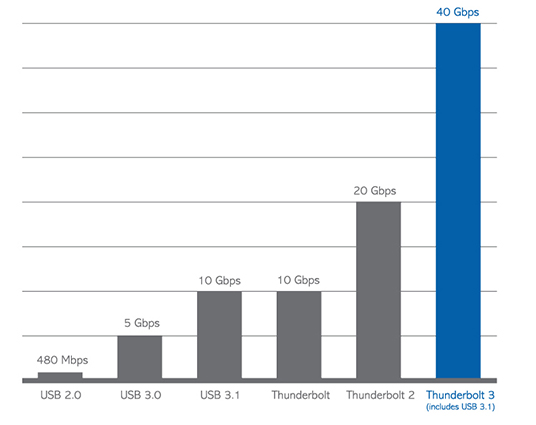

Thunderbolt 3 chart



More Speed

Speed/Transfer -Faster data transfer. Four times faster than the speed of USB 3.1, while also being backwards compatible with existing USB . The quickest Bi-directional cable.

How fast?  300 hours of video are uploaded to YouTube every minute - Thunderbolt can transfer this data in less than 20 seconds. Back up a year’s worth of continuous MP3 music playback in just over 5 minutes. Transfer 3 hours of 4K GoPro footage in less than a minute.

More Speed

More Pixels

More Pixels

Compatible with one 5k monitoror or two 4k monitors simultaneously, each at 60 fps.

• Twice the video bandwidth of any other cable
• Single-cable connection for two 4K 60Hz display or one 5K 60Hz display
• 2 streams (eight lanes) of DisplayPort* 1.2 or HDMI 1.4

More Power

Charge – Based on USB power delivery
• Optional notebook charging up to 100W while simutaneously supporting data and display transfer.
• Standard 15W to bus-powered devices

Charging
DisplayPort

More Protocols

• Bi-directional, multi-protocol (Thunderbolt, DisplayPort and USB)
• Thunderbolt:
     • 4 lanes of PCI Express Gen 3
     • 8 lanes of DisplayPort 1.2 - Supports two 4K displays (4096 x 2160 30bpp @ 60 Hz)
• USB 3.1 (10 Gbps): Compatible with billions of existing USB devices and cables
• DisplayPort  1.2:
     • Connect DVI, HDMI, and VGA displays via adapters

MPN: UPC:
K158-1044-BK1F
K158-1045-BK1F
814556019863
814556019870



What's Included:

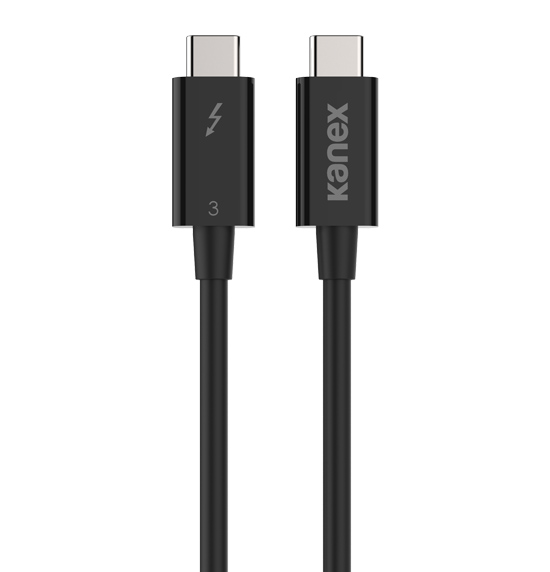

Thunderbolt™ 3 (40Gbps) USB-C Cable

Technical Specifications:


Connector Type: USB-C to USB-C
Data Transfer Speed: 40 Gigabits per second
Wattage: Up to 60W of charging / 15W to bus-powered devices
Type: Thunderbolt™ 3

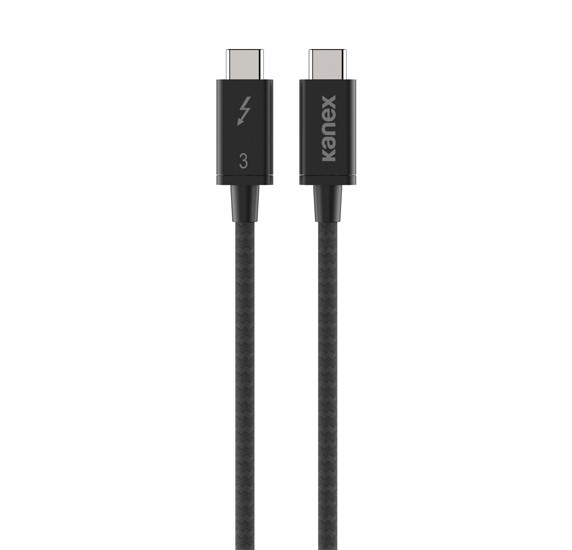

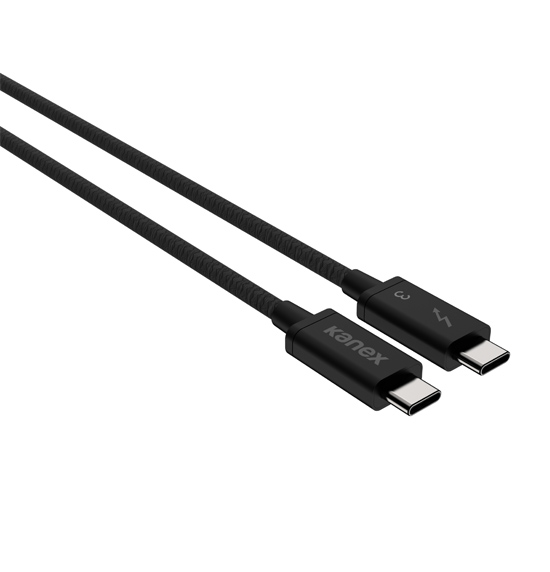

Finish: K158-1044-BK1F: Aluminum shell with braided cable
K158-1045-BK1F: PC/ABS shell with TPE cable
Cable Length: 1.6FT / 0.5M

Compatibility:

Work with any PC or device with a USB-C connector whether it is a Thunderbolt host/device, or USB, or any USB alt-mode host/device
