$69.95 4/20/2015
X

Overview

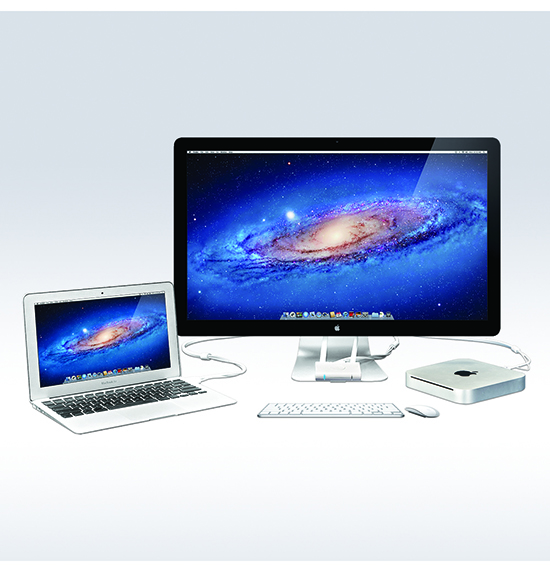

Two Macs, One Display

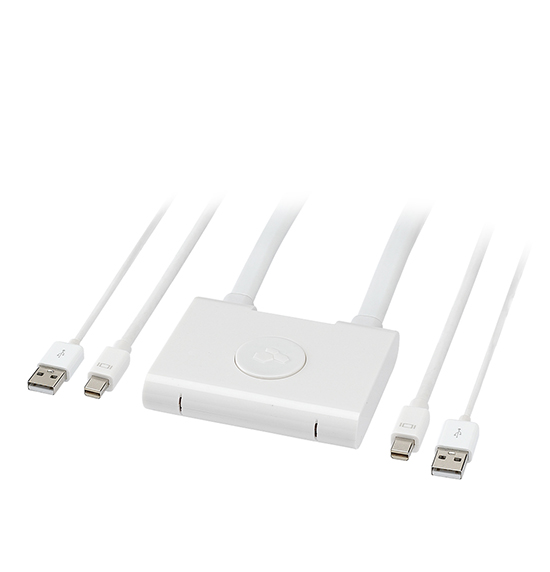

Winner of MacWorld’s Best Consumer Hardware, Kanex SnapX is a compact two-port switcher designed for Apple LED Cinema Displays 27 and 24 inch. Control two Macs with your keyboard, mouse and get full audio. Simply connect the two built-in mini DisplayPort cables with USB from the SnapX to your Mac computers, plug the display cable to the unit and you are set.
Not compatible with Thunderbolt™ iMac and Display
Connect to two iDevice


Switch between displays

Effortless Mac Switching

With the SnapX, switching from your MacBook Air to your Mac mini is a “snap” away. Toggle between the two sources by pressing the button on top and watch the LED light switch. No external power required for the SnapX.



iSight Camera and
Audio through USB Ports

Use your iSight camera and get full audio from the display’s built-in speakers seamlessly with the use of USB pass through cables.
USB pass through cables





5ft Dual Cable

Extended Reach

SnapX provides a convenient length of 5ft. (1.5m) dual cables built-in to the unit, thus providing an extension without unnecessary cables and adapters.


Clip-On

Clip-on Design

For optimum flexibility and ergonomics, SnapX easily clips on by just sliding underneath your Apple LED Cinema Display stand. Functionally designed for any desktop or office application that requires secured switching and extending without compromise.


Cable Clutter

Cable Clutter Free

SnapX provides a convenient length of 5ft. (1.5m) dual cables built-in to the unit, thus providing an extension without unnecessary cables and adapters.



Specs


MPN:
SNAPX
UPC:
814556014110

What's Included:

Kanex SnapX

Technical Specifications:

Input: 2x Mini DisplayPort Male (Front Source)
2x USB A Male (From USB Host, or to USB Device)
LAN: Ethernet RJ45 slot x 1 (Auto MDI/MDIX)
Output: 1x Mini DisplayPort Female (to display)
1x USB A Female (to USB device or from USB Host)
Power: No power supply needed.
Powered through USB or MDP (source).
Voltage: 3~5V, Current: <180mA
Power Consumption: 0.9W
Size (L-W-H): 3.4in. X 2.75in. X 0.68in.
Weight: 2 lbs
Operating Temperature: 0° to +70°
Operating Humidity: 10% to 85% RH (no condensation)
Storage Temperature: -10° to +80°
Storage Humidity: 5% to 90% RH (no condensation)
Warranty: 1-Year Parts& Labor

NOTE: Not compatible with Thunderbolt display.



Compatibility


Mac Mini Mac Mini
Early 2009
Late 2009
Mid 2010
Mid 2011
Macbook Macbook
Late 2008
Late 2009
Mid 2010

Macbook Air Macbook Air
Late 2008
Mid 2009
Late 2010
Mid 2010
Mid 2011
Macbook Pro Macbook Pro
Late 2008
Early 2009
Mid 2009
Mid 2010
Early 2011
Late 2012
Early 2013

Mac Pro Mac Pro
Early 2009
Late 2010
Apple LED Display 24 LED Display 24
Late 2008

Apple LED Display 27 LED Display 27
Mid 2010


FAQ (9)


Can i use my 27" iMac using a mini DisplayPort instead of an Apple Cinema Display?
online online redirect

Yes, you are able to use the SNAPX in "Target Display Mode" with the iMac running Mini DisplayPort. You will need an additional MDP cable to connect the SNAPX to the iMac.


Can the "Output" 1 x USB female port be used for a common wired keyboard and mouse (on keyboard USB port) simultaneously switchable with the display between the two Macs?
Yes it can, however the Apple Cinema Displays are equipped with USB ports on the backside. This is usually where you'd want to hook up the Keyboard/Mouse; The ACD USB cable should be connected to the SnapX female USB port to utilize functions such as using the ACD isight camera rather than the MacBook's isight.


Will this work with the LAST MacBook Air as well as the NEWEST MacBook Air?
Yes it works on all Macs with Thunberbolt video output as well as older Macs with Mini-DisplayPort output.
why women cheat on their husbands open women cheat on their husbands
click read here redirect



Can you use this product with the older DVI cinema displays, when using adapters?
Yes, you can use our iAdapt DVI with the SnapX to allow the connection of a DVI display rather than using the Apple Cinema Display, however you will then need to plug in a usb mouse/keyboard to the 1x USB female port on the SnapX to utilize the (1) Keyboard/Mouse for (2) Machines.
online how married men cheat redirect
why women cheat on their husbands why do women cheat on husbands women cheat on their husbands



Is this compatible with the Thunderbolt Display?
No, this adapter is not compatible with the Thunderbolt Display.
generic viagra report generac name for viagra buy discount viagra online



I'm using the SnapX with a Macbook Pro 17, Mac Mini and the 27" cinema display. The SnapX switches as intended from one unit to the other but occasionally the SnapX will switch on its own to the computer I am not using. How can I prevent this from happening? It's frustrating. Other than that, it works fine. I do get some flickering when switching to the other unit but I close FCP and reopen to stop that. Thank you. Steve
website buy canada viagra generic viagra warnings

The SnapX should not switch on it's own. The only time it will switch is if you are introducing a new source to the device. Once it detects a new source, it will automatically switch over.
online men and women redirect



It seems to me it should be able to support the now discontinued 30" Cinema Display, and probably like may video display adaptors for Apple Cinima Displays, the 30' display is not listed to be competible simply it is no longer produced, am I correct in any of this?
The SnapX is in fact compatible with the 30" ACD, however it requires an adapter to connect to the SnapX. Our iAdapt DVi & C30 both work to power 30". The iAdapt DVi is single-Link DVI so the maximum resolution on the 30" would be 1280x800, on the other hand the c30 is a dual-link dvi solution allowing the monitor to run in it's native 2560x1600 resolution.
why women cheat on their husbands why do women cheat on husbands women cheat on their husbands
website read here generic viagra warnings



How do I connect one PC, one MBP with Cinema Display and Apple Wireless Keyboard and Trackpad
why women cheat on their husbands open women cheat on their husbands

SnapX is mainly designed around connecting Macs only and not PC's. For PC's, it may or may not work depending on the Displayport requirements and power from USB. Thanks.


will it work with two Macs with mini-display ports, and an old Cinema Display (23') with DVI port ?
generic viagra report generac name for viagra buy discount viagra online

Yes, as long as you use one of our Mini Displayport to DVI adapters (C247D OR C247DL). Thanks.


Ask Questions

Name:
Email Address:
Question:



Downloads


Images

view

view

view

view




Ratings (40)

  4.05 out of 5 / Based on 40 reviews

I use this product between my iMac and my work laptop (lenovo) 2. What I love best of the product is the simplicity of pressing one button to switch between monitors 3. The plastic, I would have not had an issue paying more for an aluminum shell. Also the iMac doesn't go to sleep when the Kanex is plugged in, the monitor does, but you still hear the iMac running. Problem goes away once the Kanex is unplugged. 4. Keep up the great work!!
why women cheat on their husbands why do married men cheat on their wives women cheat on their husbands


Reviewed by JB , Wesley Chapel FL United States , 8/4/2014
Device: iMac - Year: 2010 / 07


I love the product overall, just it feels to plastic (cheap), an aluminium version would be nice
why women cheat on their husbands why do married men cheat on their wives women cheat on their husbands


Reviewed by RR , Antwerpen Belgium , 7/25/2014
Device: Mac Pro - Year: 2014


SORRY BUT I INFORMED YOU THAT I DID NOT GET THE GOODS I ASKED FOR YOUR HELP BUT NOTHING HAPPEND PLS TRY TO LOCATE THE PLACE IT IS STACKED PLS SEND ME A PHONE NO. SO I CAN BE IN CONTACT WITH A PERSON WHO CAN ADVISE ME WHAT TO DO THX DVIR

Reviewed by sd , givataim Israel , 7/13/2014
Device: - Year:


I use this product to connect two MacBook Pros to an Apple Cinema Display with a Macally keyboard and Logitech wireless mouse (Marathon Mouse). Good news: it allows me to switch between the two computers with a push of a button. Bad news: every so often (typically several times per hour), the screen will blank and then come back. Sometimes it comes back as though I had unplugged the monitor (so the windows all resize to the laptop screen size). Sometimes when I push the button, instead of showing one of the Macs on the Cinema Display, neither of them are showing. So, when it works, it works great, but the intermittent glitches make it quite annoying.

Reviewed by WS , Boulder CO United States , 6/25/2014
Device: Macbook Pro - Year: 2014/5


1. I use it multiple times a day to switch between 2 machines. 2. It does what I need. 3. The first one I bought was faulty in one Mini-Display adaptor and this second one is also a little "temperamental" in that sometimes unplugging and plugging back in seems to make a difference. My original Apple Display Mini-Display Port plug does not have this problem so I can only assume it is your plugs. I would have happily paid a higher price for a better quality product. This applies to a more solid housing and button to (especially) high quality adaptors and cables... 4. If you are playing in the Apple market do not be afraid to produce highest quality items and making them expensive, anyone who owns a Apple machine is used to this...
medical abortion pill online cytotec abortion pill buy online buy abortion pill
medical abortion pill online abortion pill pill for abortion online


Reviewed by WH , Morgantown WV United States , 5/21/2014
Device: Others - Year: 2014/05


1. I use the SnapX to connect two Mac Pro's and a monitor/keyboard/mouse. 2. It works very well for me.

Reviewed by TT , Ames IA United States , 1/27/2014
Device: Mac Pro - Year: 2012


1. I use this as a switch between my Crossfire 5770 XFX Radeon HD PC and my 2012 MacBook Air 13" 2. I like this design and simplicity. 3. The cables are sensitive to being bent. I had to RMA the first one I bought. 4. I didn't like having to pay more to buy from Kanex only to have to pay return shipping for a faulty product. Thankfully your customer care is close by to my living situation.
online online redirect
website buy canada viagra generic viagra warnings


Reviewed by JP , Memphis TN United States , 8/13/2013
Device: Others - Year:


Used product to gradually migrate to a new computer. Loved being able to instantly switch back and forth. Didn't like the fact that sometimes it switched on it's own. Great product. Life saver!
medical abortion pill online read buy abortion pill
online how married men cheat redirect
boyfriend cheated on me husband cheated on me go
click generic price viagra redirect


Reviewed by JL , Toronto ON Canada , 4/30/2013
Device: Mac Pro - Year: 2013/04


It's a good solution, one of the better A/B-type switches I've user in general. The switch itself does sometimes get stuck if you don't push it on the center, which can cause repeated switching until it gets pushed again & un-stuck. But, this allows two laptops to share one monitor. A downside is that the laptops themselves re-shuffle the items on desktops when they lose their connection to the monitor; it would be better if they could somehow be fooled into thinking the monitor was still there when the switch was pressed, so that when you switched back, everything was still in the same place....
where can you buy the abortion pill pill for abortion online where to buy abortion pills online
why are women unfaithful married and want to cheat link
boyfriend cheated on me married men that cheat go


Reviewed by GW , Portland OR United States , 4/29/2013
Device: Macbook Pro - Year: 2009


I had a need to reactivate an older Mac mini (to run an older paint application, which I missed very much), while I am primarily running on a more current model. I have only one Cinema Display, and it became a burden to down everything and change all the connections. Then I discovered Kanex SnapX. It is a marvelous product and has worked perfectly for me. It's a great addition and makes my work so much easier. I would recomment this product to anyone who has the same need.
medical abortion pill online abortion pill buy abortion pill
online men and women redirect


Reviewed by SG , Sierra Vista AZ United States , 4/27/2013
Device: Mac Mini - Year: Mid 2011
